Sea Jay Centre Cabin Titan
Description

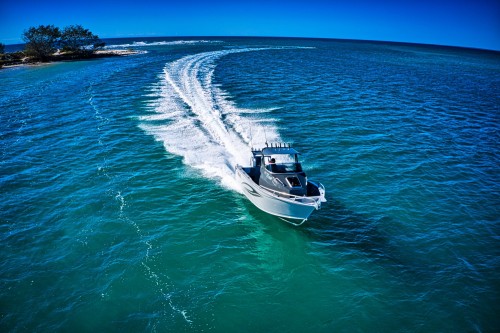

The TITAN centre cab is a great all round platform for fishing, diving or extended over night trips.
Built on the popular Samurai Hull the Titan has 360 degree fishability with easy access to the bow / anchor well – perfect for reef fishing or sports fishing for pelagics.
The wide body gives greater deck space and optimal stability with a heavy duty ladder and dive door giving great access for diving or swimming.
The cabin is large enough to sleep two adults with storage below the bunks to stow your gear.
| SPECIFICATIONS | 5.50 | 5.90 | 6.30 |
| SAMURAI HULL | ✓ | ✓ | ✓ |
| Bottoms 5083 High Tensile Plate (mm) | 4.0 | 4.0 | 5.0 |
| Plate sides (mm) | 3.0 | 3.0 | 4.0 |
| Beam (m) | 2.45 | 2.45 | 2.48 |
| Depth (m) | 1.3 | 1.36 | 1.57 |
| Depth – including screen & canopy top (m) | TBA | 3.03 | 3.16 |
| Depth – canopy top folded (m) | TBA | 2.51 | 2.64 |
| Floor ribs | 14 | 15 | 16 |
| Length overall (m) | 5.82 | 6.22 | 6.65 |
| Number of persons (at 80kg per person) | 6 | 6 | 6 |
| Weight approx (kg) | TBA | 895 | 1077 |
| Maximum hp | 150 | 150 | 200 |
| Maximum motor weight (kg) | 240 | 240 | 285 |
| Note- Specification may vary & are subject to change without notice. |
| FEATURES | 550 | 590 | 630 | |
| Anchor well with mounting plate to suit stress free Mini winch | ✓ | ✓ | X | |
| Anchor well with mounting plate to suit stress free Midi winch | X | X | ✓ | |
| Bait Board – Deluxe | Opt | Opt | ✓ | |
| Bait tank plumbed – alloy | ✓ | ✓ | ✓ | |
| Battery & oil rack in stern | ✓ | ✓ | ✓ | |
| Boarding ladder – heavy duty | ✓ | ✓ | ✓ | |
| Bollards | 3 | 3 | 3 | |
| Sarca bow sprit & roller (suits Sarca #2) | ✓ | ✓ | X | |
| Sarca bow sprit & roller (suits Sarca #3) | X | X | ✓ | |
| Bungs 38mm | 1 | 1 | 1 | |
| Capped Keel 50mm | ✓ | ✓ | ✓ | |
| Dive door | ✓ | ✓ | ✓ | |
| Floor – carpet / plywood | ✓ | ✓ | X | |
| Floor “Tuff Deck” 3mm checker plate wash down alloy with sump box | Opt | Opt | ✓ | |
| Flotation – under floor | ✓ | ✓ | ✓ | |
| Gunwhale rubber inserts | ✓ | ✓ | ✓ | |
| Painted – chine up & inside | ✓ | ✓ | ✓ | |
| Pin stripes | ✓ | ✓ | ✓ | |
| 5083 plate 4mm bottoms with capped keel & welded strakes | 4mm | 4mm | 5mm | |
| Reverse Chines | ✓ | ✓ | ✓ | |
| Rod holders (plastic) | 6 | 6 | 6 | |
| Side Pockets | ✓ | ✓ | ✓ | |
| Spray chines | ✓ | ✓ | ✓ | |
| Steering – hydraulic | ✓ | ✓ | ✓ | |
| Walk Around raise floor | ✓ | ✓ | ✓ | |
| Carpeted step to raised floor | ✓ | ✓ | ✓ | |
| Samurai Hull | ✓ | ✓ | ✓ | |
| Towing eye – double | ✓ | ✓ | ✓ | |
| Transducer bracket – Dual | ✓ | ✓ | ✓ | |
| Trim Tabs with Indicator switch | Opt |
Opt |
✓ | |
| Wide side decks – Fully welded | ✓ | ✓ | ✓ | |
| TRANSOM | ||||
| Ultimate Edge 2 | ✓ | ✓ | ✓ | |
| Extra Long Shaft 25″ | ✓ | ✓ | ✓ | |
| CENTRE CABIN | ||||
| Cabin lining | Opt | Opt | Opt | |
| Carpeted covered bunks – Storage underneath | ✓ | ✓ | ✓ | |
| Folding Alloy Canopy with 6 rod holders | ✓ | ✓ | ✓ | |
| Rear instrument cover | ✓ | ✓ | ✓ | |
| Cabin hatch | ✓ | ✓ | ✓ | |
| Windscreen | ✓ | ✓ | ✓ | |
| FUEL TANK | ||||
| Under floor / Gunwale fill / gauge (litres) | 175 | 200 | 210 | |
| RAILS | ||||
| Heavy duty 32mm bow rails | ✓ | ✓ | ✓ | |
| Heavy duty 32mm transom rails | ✓ | ✓ | ✓ | |
| SEATS | ||||
| Deluxe fully upholstered folding seat | 2 | 2 | 2 | |
| Seat Box’s With Tackle Storage To Suit 4 x Plano 3700 Series Tackle Trays | ✓ | ✓ | ✓ | |
| Seat Slide Driver & Passenger | ✓ | ✓ | ✓ | |
| ELECTRICAL | ||||
| Accessory pre-rig loom with battery box & isolation switch to suit single battery | ✓ | ✓ | ✓ | |
| Bilge Pump | ✓ | ✓ | ✓ | |
| Cabin Light LED | ✓ | ✓ | ✓ | |
| Bait Tank Pump | ✓ | ✓ | ✓ | |
| GME GX700 VHF radio flush mounted with 1.8m aerial | Opt |
Opt |
✓ | |
| 6 gang switch panel / navigation, stern & anchor light | ✓ | ✓ | ✓ | |
| Garmin GT56 Transducer | ✓ | ✓ | ✓ | |
| Note – Features are subject to change without notice | ||||
Opt = Optional. Also check options tab for full list of options.
Std = Standard inclusion
- Make:
-
Sea Jay
- Model:
-
Centre Cabin
- Condition:
-
New
- Year:
-
2026
