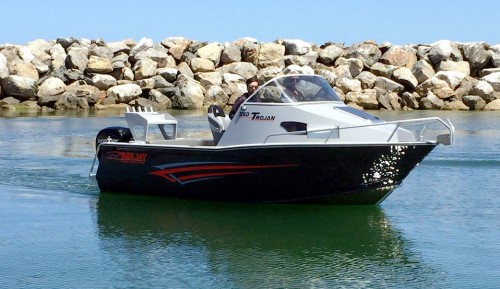

Sea Jay Cabin Boats Trojan
Description
We have take the cutting edge Samurai Hull to the next level with the Trojan cabin boats that are a true off-shore fishing craft with long range capabilities. The latest generation Samurai Hull has a genuine 5083 grade plate alloy bottom with the stylish high swept bow section, reverse chines, capped keel and variable dead-rise on a wide body configuration giving optimum ride and performance with great stability at rest.
The spacious lined cabin has loads of storage space for fishing gear with V berth bunks to accomodate even the 6 footers.
| SPECIFICATIONS | 550 | 590 |
| Bottoms 5083 grade high tensile (mm) | 4.0 | 4.0 |
| Plate sides (mm) | 3.0 | 3.0 |
| Beam (m) | 2.45 | 2.45 |
| Depth (m) | 1.32 | 1.36 |
| Depth – incl. screen (m) | 2.20 | 2.28 |
| Floor ribs | 14 | 15 |
| Number of persons | 6 | 6 |
| Weight approx (kg) | 753 | TBA |
| Maximum hp | 150 | 150 |
| Maximum motor weight (kg) | 230 | 230 |
| Overall length (m) | 5.82 |
| STANDARD FEATURES | 550 | 590 | |
| Anchorwell with mounting plate to suit stress free mini winch | ✓ | ✓ | |
| Live Bait tank plumbed – alloy | ✓ | ✓ | |
| Battery & oil rack in stern | ✓ | ✓ | |
| Boarding ladder – heavy duty | ✓ | ✓ | |
| Bollards | 3 | 3 | |
| Sarca bow sprit & roller (suits sarca #2) | ✓ | ✓ | |
| Bung 38mm | 1 | 1 | |
| Dive door | ✓ | ✓ | |
| Floor – carpet / plywood | ✓ | ✓ | |
| Flotation – under floor | ✓ | ✓ | |
| Gunwhale rubber inserts | ✓ | ✓ | |
| Painted – chine up & inside | ✓ | ✓ | |
| Pin stripping | ✓ | ✓ | |
| 5083 plate 4mm bottoms with capped keel & welded strakes | ✓ | ✓ | |
| Rod holders (plastic) | 6 | 6 | |
| Spray chines | ✓ | ✓ | |
| Steering – hydraulic | ✓ | ✓ | |
| Side pockets – cabin | ✓ | ✓ | |
| Spray chines | ✓ | ✓ | |
| Samurai Hull | ✓ | ✓ | |
| Towing eye – double | ✓ | ✓ | |
| Transom boarding platform – non skid | ✓ | ✓ | |
| Transducer bracket – Dual | ✓ | ✓ | |
| Wide side decks – fully welded | ✓ | ✓ | |
| TRANSOM | |||
| Ultimate Edge 2 – Extra Long Shaft 25″ | ✓ | ✓ | |
| CABIN | |||
| Carpeted covered bunks – storage underneath | ✓ | ✓ | |
| Cabin lining | ✓ | ✓ | |
| Rear instrument cover | ✓ | ✓ | |
| Cabin hatch | ✓ | ✓ | |
| Windscreen | ✓ | ✓ | |
| FUEL TANK | |||
| Under floor / Gunwale filler / gauge (ltr) | 175L | 200L | |
| RAILS | |||
| Heavy duty 32mm bow rails | ✓ | ✓ | |
| Heavy duty 32mm transom rails | ✓ | ✓ | |
| SEATS | |||
| Offshore swiveling bolster seats | 2 | 2 | |
| Drivers side seat box with tackle storage to suit 6 x plano 4-3730-0 tackle trays | ✓ | ✓ | |
| Passenger side seat box with storage hatch & shelf | ✓ | ✓ | |
| Seat slide and swivel – driver – passenger swivel only | ✓ | ✓ | |
| ELECTRICAL | |||
| accessory pre rig loom with battery box & isolation switch to suit single battery | ✓ | ✓ | |
| Bilge Pump | ✓ | ✓ | |
| Light (led) – Navigation | ✓ | ✓ | |
| 6 gang switch panel / bilge pump / navigation, stern & anchor light / battery isolator | ✓ | ✓ | |
| Garmin GT56UHD -TM Transducer | ✓ | ✓ | |
- Make:
-
Sea Jay
- Model:
-
Cabin Boats
- Condition:
-
New
- Year:
-
2026
